AKTA Explorer 100 主要技术指标：

流速范围：0.01-100 ml/min

UV-900紫外光/可见光检测器

波长范围：190-700nm

PH/C-900PH/电导检测器

PH范围：2-12

电导范围：1μS/cm-999.9mS/cm

配有进样泵

可在不同层析柱间进行切换

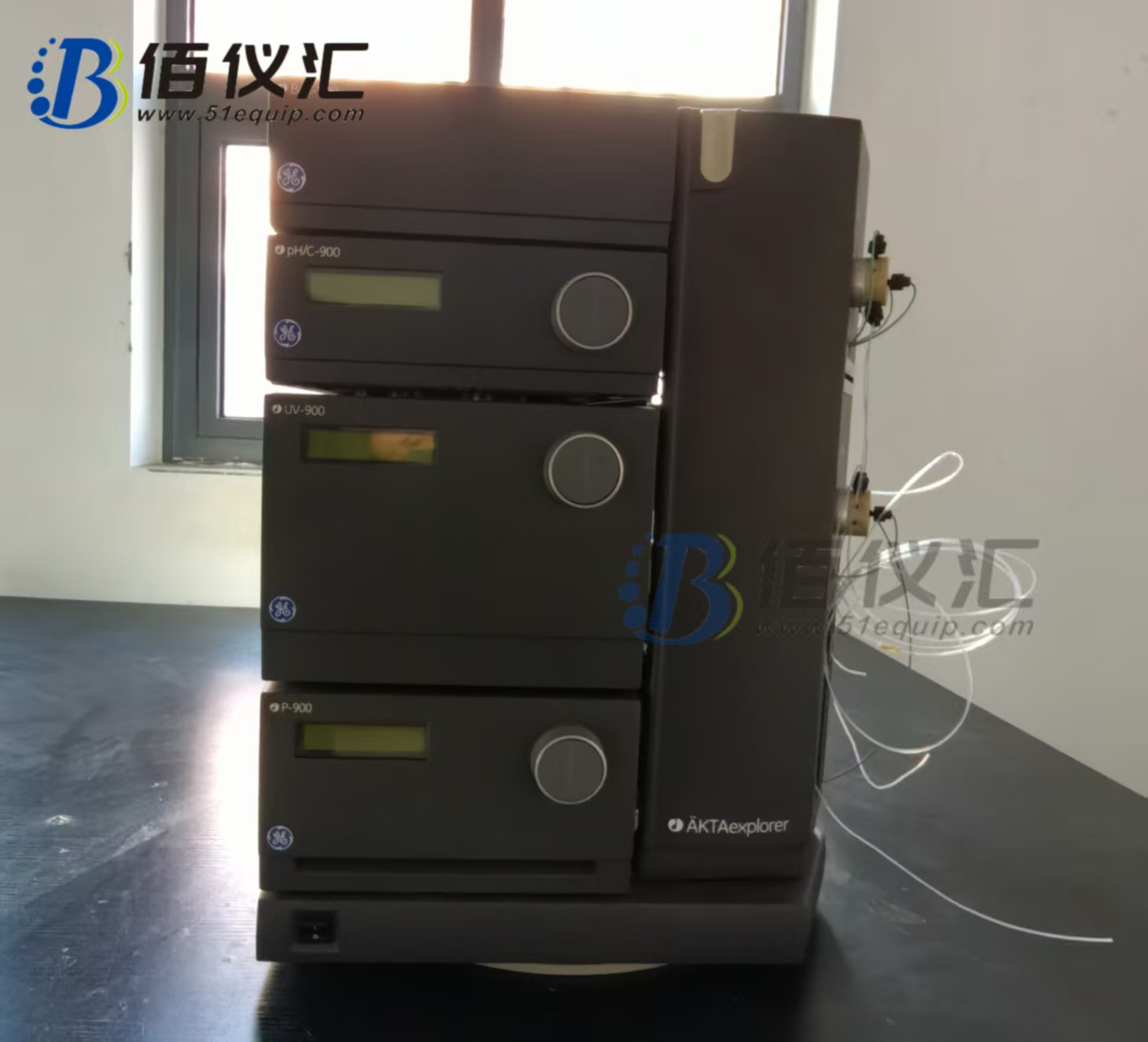

System consists of:

P-900 Pump w/100 Pump Heads.

UV-900 Monitor.

pH/C-900 Monitor.

CU-950 Control Box.

P-950 Sample Pump.

Air-900 Control Unit.

Air-925 Sensor

Air-912 Sensor

M-925 5mL Mixing chamber.

Conductivity Cell.

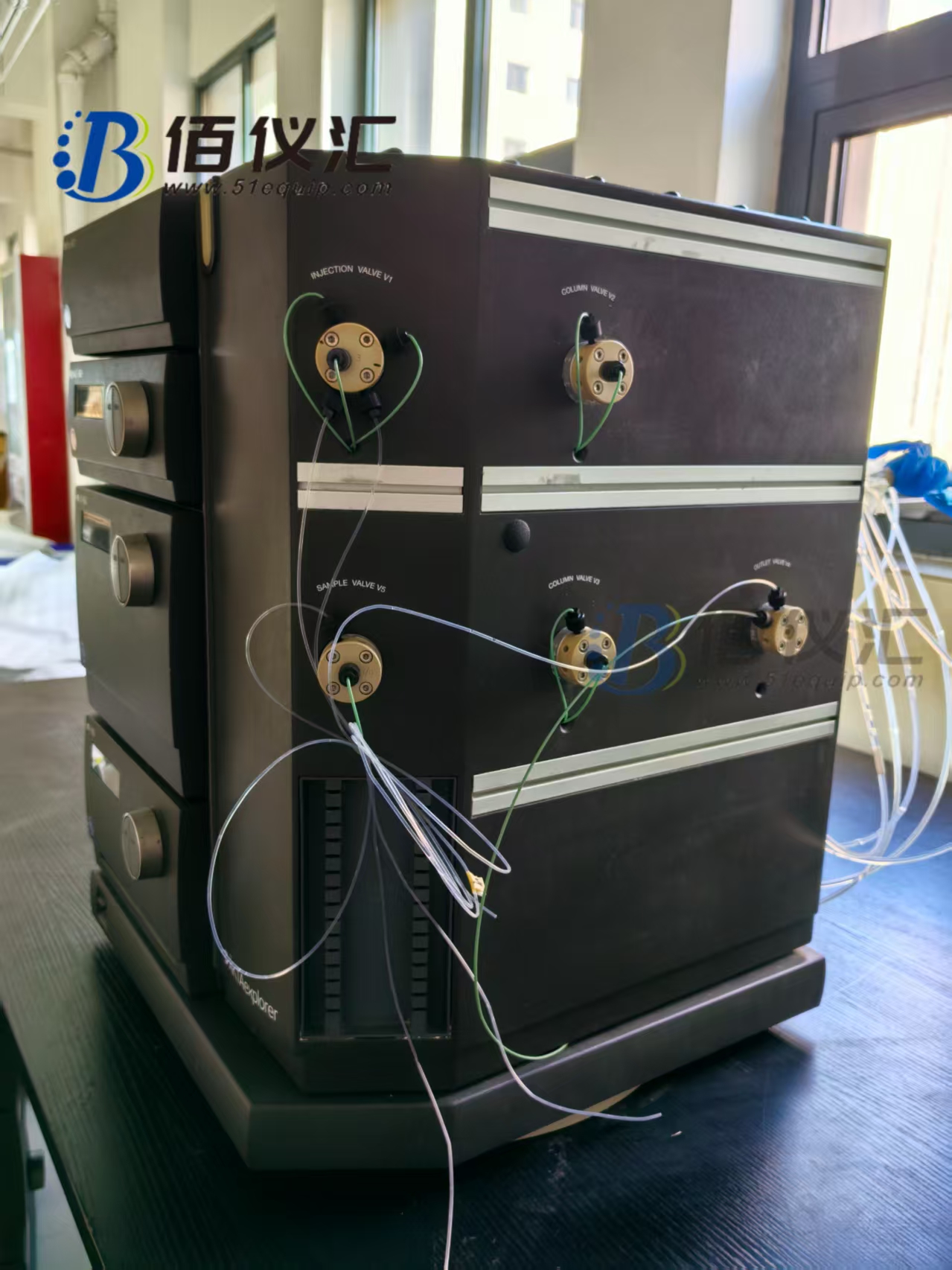

Injection V1, Column V2, Column V3, Outlet V4, Sample V5, Buffer V6, Flow Direction V7 Valves

Frac-950 Fraction Collector w/ -Tube Rack A (18mm and 30mm tubes)

Dell Latitude i5 running Windows 7 Pro with Unicorn 5.11 (build 407) Software.

Hardware User Manual.

Power Cords.

CU-950 Controller for communication with PC.

USB cable for CU-950 to Computer connection.

Uninet Cable for Frac-950

Column Holder.

Flow Restrictor FR-902
